High-Speed Automatic Dual Spindle PCB Depaneling Machine For High-Density PCBA Cutting

High-Speed Automatic Dual Spindle PCB Depaneling Machine For High-Density PCBA Cutting

Marchio:	HSTECH
Numero di modello:	RT350/RT360/RT360A
Moq:	1 pz
prezzo:	negotiable
Capacità di approvvigionamento:	50 PC/mese

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

CE,ISO

Nome del prodotto:

Macchina del router di PCBA

Strumento di taglio:

Fresatrice

Piattaforma:

Raddoppiare

Raccogliere rottami:

Collettore di polveri

Voltaggio:

AC220V 50Hz

Garanzia:

1 anno

Imballaggi particolari:

Di legno

Capacità di alimentazione:

50 PC/mese

Evidenziare:

High-Speed Automatic PCB Depaneling Machine

Dual Spindle PCBA Cutting Machine

High-Density PCB Depaneling Router

Descrizione del prodotto

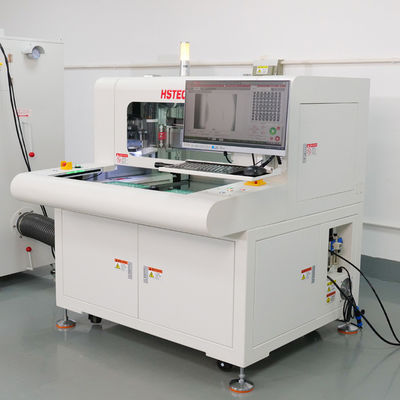

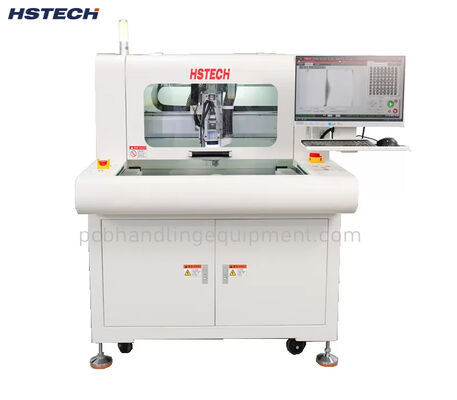

High-Speed Automatic Dual Spindle PCB Depaneling Machine

Designed for high-density PCBA cutting with precision, efficiency, and reliability for SMT assembly applications.

Product Overview

The PCB Router Depaneling Machine is a high-performance, electric-controlled depaneling solution engineered for the electronics manufacturing industry. It efficiently separates multi-up PCBA boards into individual units with exceptional precision, eliminating mechanical stress and quality risks associated with traditional manual or V-cut depaneling methods.

Featuring a high-speed spindle (up to 60,000 RPM) and advanced servo-driven motion control, this machine is ideal for depaneling small to medium-sized PCBA boards, including high-density, complex designs. Select models with dual work platforms support continuous production, minimizing downtime and maximizing throughput in SMT assembly lines.

Core Working Principle

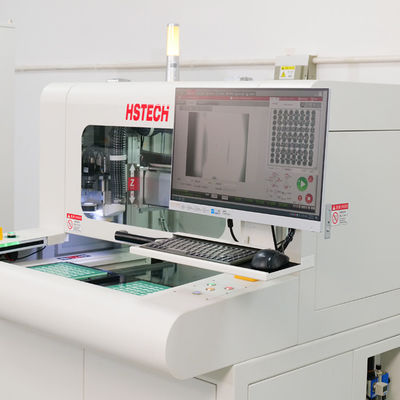

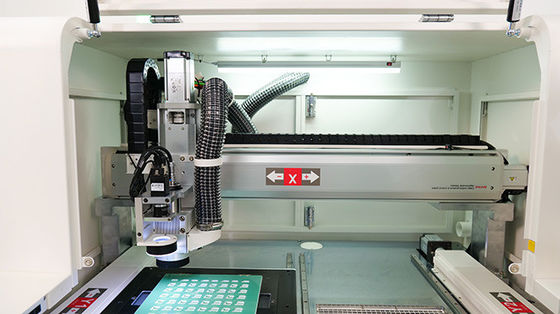

Unlike conventional depaneling techniques, the PCB Router depaneling machine utilizes a high-speed rotating tungsten steel milling cutter to cut along pre-programmed paths on the PCB. This advanced process delivers significant advantages:

No mechanical stress: The milling cutter removes material cleanly, preventing bending, cracking, or component damage
High precision cutting: Servo-driven system ensures consistent cut paths on complex, high-density boards
Clean, burr-free edges: High-speed spindle and dedicated dust collector eliminate debris and reduce burr formation
Programmable paths: Supports custom depaneling designs including irregular shapes and multi-up layouts

Key Features & Benefits

Feature	Details	Benefits
Electric Control, No Air Source Required	Operates on pure electric power, eliminating compressed air pipelines	Simplifies installation, reduces infrastructure costs, avoids air supply downtime
High Stability & Easy Maintenance	Robust mechanical design with precision components and open structure	Minimizes breakdowns, reduces maintenance time, extends service life
Simple Operation & Short Changeover Time	User-friendly software with keyboard/mouse control and intuitive programming	Reduces operator training, enables quick job switching, maximizes uptime
Dual Work Platforms (Select Models)	Dual rotary work platforms allow loading/unloading during cutting	Doubles production efficiency, eliminates idle time between batches
High-Speed Spindle (Up to 60,000 RPM)	5000~60000 RPM auto-cooling spindle with tungsten steel cutters	Delivers clean, fast cuts on various PCB materials for all production volumes
Bottom Dust Collection System	Large-capacity dust collector with bottom collection design	Captures milling debris, maintains clean workshop, prevents component contamination

Product Specifications

Item	RT350	RT360 / RT360A
Model	RT350	RT360 / RT360A
Structure	Single Spindle, Dual Work Platforms	Dual Spindle, Dual Work Platforms
Machine Size (mm)	100012001550	120014001550
Gross Weight	700kg	900kg
Dust Collector Size (mm)	6256001600	6256001600
Dust Collection Method	Bottom collection	Bottom collection
Work Platform Size	300*400mm	410*510mm
Platform Driving Type	Double rotary platform, precision slicer with 3-phase motor inverter	Double rotary platform, precision slicer with 3-phase motor inverter
Driving System	X/Y/Z axis driven by servo motor; W axis driven by three-phase motor frequency inverter	X/Y/Z axis driven by servo motor; W axis driven by three-phase motor frequency inverter
Routing Spindle	5000~50000 RPM, auto cooling	5000~60000 RPM, auto cooling
Cutting Speed	1–100mm/s	1–100mm/s
Cutting Accuracy	±0.05mm	±0.05mm
Repeat Accuracy	±0.02mm	±0.02mm
Axis Moving Speed	800mm/s	800mm/s
Z Axis System	Screw driven, dual guide	Screw driven, dual guide
Router Kit	Milling cutter, φ0.8~φ3.0 left rotation, shank tungsten steel	Milling cutter, φ0.8~φ3.0 left rotation, shank tungsten steel
Tool Life Control	Software program control	Software program control
Active Protective Function	Safety light curtain	Safety light curtain
Security Door	Manual door	Manual door
Error Alarm	Yes	Yes
Program Method	Self-programming, camera controlled by keyboard and mouse	Self-programming, camera controlled by keyboard and mouse

Applications & Suitable Industries

This PCB Router depaneling machine is widely used in electronics manufacturing industries requiring precise, stress-free depaneling:

Consumer electronics: Smartphones, wearables, and home appliances with small to medium-sized PCBA boards
Automotive electronics: ECUs, sensors, and control modules requiring high reliability
Medical devices: Medical equipment PCBs where component integrity is critical
Telecommunications: Network devices and routers with high-density, fine-pitch components
Industrial control: PLCs, motor drives, and industrial automation systems
