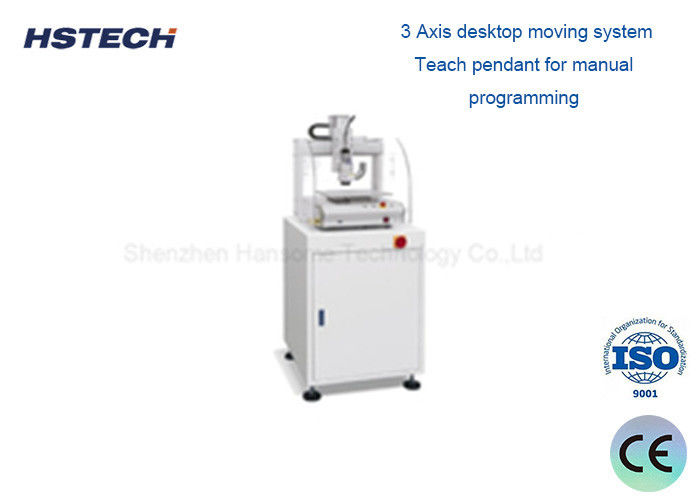

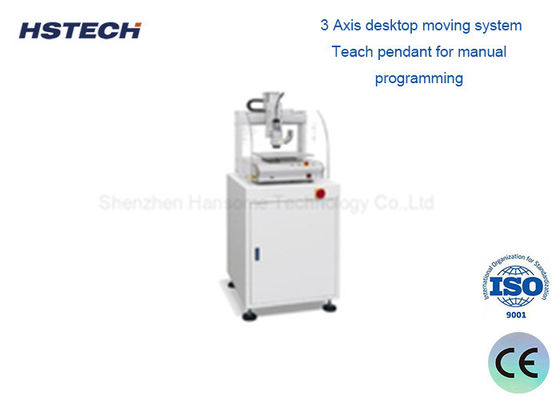

Hiwin 3 Axis Desktop PCBA Router Machine High Speed Spindle PCB Depaneling Router

Are you looking for a compact yet powerful solution to depanel your printed circuit boards? Do you demand extreme accuracy without compromising on machine durability? Our Hiwin 3-Axis Desktop PCB Router Machine is engineered for high-end electronics manufacturing, featuring top-tier HIWIN linear guideways and motors. This ensures superior rigidity, minimal vibration, and exceptional positioning accuracy for every cut.

The Hiwin 3 Axis Desktop PCB Router Machine is a high-precision tabletop PCB depaneling system designed for SMT assembly lines small to medium batch production and prototype processing. Equipped with Taiwan Hiwin linear guides and a high speed routing spindle this desktop PCBA router delivers exceptional accuracy stability and efficiency for cutting and separating panelized PCBs and PCBAs into individual boards. It supports straight line arc and circular depaneling for various PCB types including rigid boards thin substrates and multi layer PCBs.

• 3 Axis desktop moving system.
• Teach pendant for manual programming.
• High speed routing spindle, speed at 20000~40000rpm.
• Taiwan Hiwin brand guide, make sure the moving system precision and smooth.
• Upper side dust collector method, make sure the platform clean.
• Suitable for depaneling straight line, arc, and circular connectted boards.
• Enclosed operating room, security and low noise.

This high-performance desktop router is widely used across various industries requiring precise board separation:

• Consumer Electronics: Separating mobile phone motherboards, smartwatch PCBs, and USB modules.
• LED Industry: Cutting aluminum-based LED light bars and panels with high thermal conductivity.
• Automotive Electronics: Precision depaneling of engine control units (ECUs), sensor boards, and dashboard modules.
• R&D and Prototyping: Quickly prototyping and shaping custom circuit boards in laboratory environments.

Quality Components Define Quality Output. We understand that precision machinery requires premium parts. By integrating HIWIN technology, we provide a machine that maintains its accuracy over years of continuous operation.

• Reduced Maintenance Costs: The high-quality HIWIN rail system is highly durable and resistant to wear, minimizing downtime and maintenance expenses.
• Superior Cut Quality: Minimal vibration during high-speed milling ensures clean edges with no burrs, reducing the need for secondary cleaning processes.
• Global Compatibility: Designed to meet international safety standards (CE/RoHS compliant). Fully adaptable voltage options make it ready for deployment in Vietnam, Thailand, Germany, the USA, and beyond.
• Excellent After-Sales Support: We provide comprehensive English manuals, remote technical support, and readily available spare parts to keep your production running smoothly.

Experience the difference that genuine HIWIN components make in precision and durability. Contact us today for a FREE Quote and a live video demonstration!
